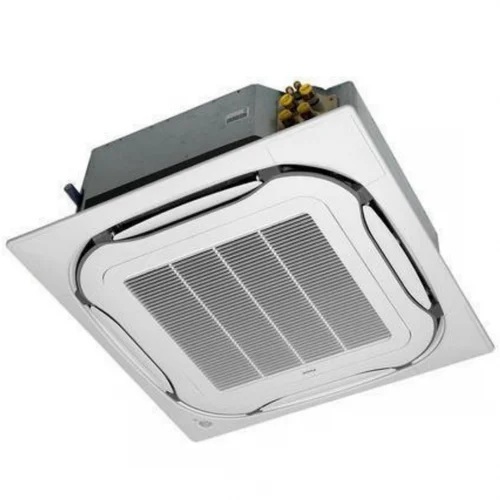

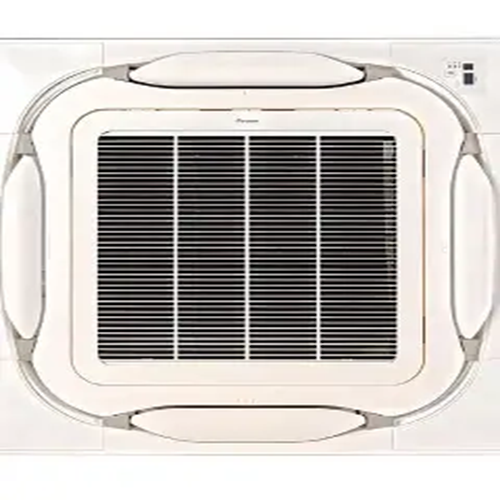

Daikin 1.5 Ton 3 Star-Inverter Cassette AC (FCVFQ50AV16)

Send Inquiry

Request To Call Back

Daikin 1.5 Ton 3 Star-Inverter Cassette AC (FCVFQ50AV16)

Name: Daikin 1.5 Ton 3 Star-Inverter Cassette AC (FCVFQ50AV16)
Brand: OPTECH AIRCON ENGINEERS
Price: 71500.00 INR
Availability: InStock

Price 71500.00 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Daikin 1.5 Ton 3 Star-Inverter Cassette AC (FCVFQ50AV16) Specification

Sensible control
Yes

Power Mode
Inverter

Power Supply
1 Phase, 50 Hz, 220-240V

Indoor Fan Input
40 W

Type Of Compressor
Swing Compressor

Compressor
Inverter Rotary

Condition
New

Outdoor Fan Input
60 W

Mounting
Ceiling Mounted

Running Current
7.3 A

Power Consumption
1.6 kW

Cooling Capacity
5.2 kW

Dimension (L*W*H)
Indoor: 840x840x204 mm; Outdoor: 845x595x300 mm

Temperature Control
Digital

Place of Origin
India

Refrigerant
R32

Air Flow Capacity
588 CMH

Filtration Grade
Standard Filter

Type
Cassette AC

Cooling/Heating
Cooling

Capacity
1.5 Ton

Power Source
Electric

Voltage
220-240V

Color
White

Weight (kg)
Indoor: 17 kg, Outdoor: 42 kg

Working Temperature
52C Max

Fan Speed
3 Speed Levels

Noise Level
36 dB

Energy Efficiency Rating
3 Star

Remote Operated
Yes

Anti-cold Air Function
Yes

Panel Model
BYFQ60CWF

Dehumidification
Yes

Moisture Removal
2.0 L/h

EER
3.50 W/W

Frequency
50 Hz

Drain Pump
Built-in High Lift (up to 750 mm)

Auto Restart
Yes

Operation Mode
Auto/Cool/Dry/Fan

Applicable Room Size
Up to 180 sq.ft.

Swing Operation
4-way Air Swing

Pipe Connection
Liquid: 6.4mm, Gas: 12.7mm

Refrigerant Pipe Length
Up to 15 m

Timer
Yes

Installation Kit
Included

Display
LCD Remote

Wide Angle Airflow
Yes

Self Diagnosis
Yes

About Daikin 1.5 Ton 3 Star-Inverter Cassette AC (FCVFQ50AV16)

The Daikin FCVFQ Series 1.5 TR 3 Star-Inverter Cassette Air Conditioner is a top-performing cooling system that delivers an Indoor Air Flow of 812 CFM, with an Indoor Sound Pressure Level of 39 dBA High. With a Nominal Cooling Capacity of 1.5 TR, 5.3 kW and a Nominal Total Input Power of 1420 W (cooling), this air conditioner is an apt choice for small to mid-sized rooms. It comes with Outdoor Pipe Connection Flare (Type), 6.35 mm (Liquid), and 12.7 mm (Gas). Its ISEER rating is 3.99 w/w, which makes it an energy-efficient and eco-friendly choice for home and office purposes. The unit is silver in color, and its dimensions are 840x840x256 mm. It is designed to be easy to install and use, making it a popular choice for residential and commercial use. With a warranty included, you can be sure that your investment is protected for years to come.

Indoor Air Flow812 CFM

Indoor Sound Pressure Level39 dBA High

Max Piping Elevation10 m

Nominal Cooling Capacity1.5 TR,5.3 kW

Nominal Total Input Power1420 W (cooling)

Outdoor Pipe ConnectionFlare (Type),6.35mm (Liquid),12.7 mm (Gas)

Output Unit Dimensions840x840x256 mm

Iseer3.99 w/w

FAQs of Daikin FCQF Series 1.5 TR 3 Star-Inverter Cassette Air Conditioner:

Q: What is the energy efficiency rating of the Daikin FCQF Series 1.5 TR 3 Star-Inverter Cassette Air Conditioner?

A: The energy efficiency rating of this air conditioner is Three stars.

Q: What is the ISEER rating of this air conditioner?

A: The ISEER rating of this Daikin air conditioner is 3.99 w/w, which means it is an energy-efficient choice for your cooling needs.

Q: What is the Indoor Air Flow rate of this air conditioner?

A: The Indoor Air Flow rate of this air conditioner is 812 CFM.

Q: What is the warranty period provided with this air conditioner?

A: The Daikin FCVFQ Series 1.5 TR 3 Star-Inverter Cassette Air Conditioner comes with a warranty period, ensuring that your investment is protected for years to come.

Q: What is the maximum piping elevation for this air conditioner?

A: The maximum piping elevation for this air conditioner is 10 meters.

Cutting-edge Energy Efficiency and Performance

This Daikin cassette AC is rated 3 Star for energy efficiency and has an EER of 3.50 W/W, ensuring reliable cooling with optimized energy usage. The 1.5 ton capacity and a cooling power of 5.2 kW effectively maintain comfortable indoor climates in mid-sized rooms, reducing electricity costs while delivering consistent performance under demanding temperatures, up to 52C.

Innovative Comfort and Airflow Technology

Enjoy uniform cooling with 4-way air swing, wide-angle airflow, and three adjustable fan speeds. The AC's built-in high lift drain pump (up to 750 mm) and anti-cold air function ensure efficient drainage and gentle air output, enhancing user comfort. The dehumidification mode efficiently removes excess moisture from the air, making it perfect for Indian climates.

User-friendly Controls and Hassle-free Maintenance

Operate your Daikin cassette AC easily with the LCD remote and digital temperature control settings. Features like self-diagnosis and auto-restart simplify troubleshooting and maintain peak performance. With an included installation kit, built-in filtration, and support for a refrigerant pipe length up to 15 m, the unit is designed for convenient installation and easy upkeep.

FAQ's of Daikin 1.5 Ton 3 Star-Inverter Cassette AC (FCVFQ50AV16):

Q: How does the built-in high lift drain pump in the Daikin cassette AC benefit installation?

A: The built-in high lift drain pump enables efficient drainage of condensate water up to 750 mm above the unit, making it easier to install in locations where piping needs to run above ceiling levels. This allows more flexible and convenient installation options, especially in commercial or challenging residential settings.

Q: What room size is suitable for the Daikin 1.5 Ton 3 Star-Inverter Cassette AC?

A: This cassette AC is ideal for rooms up to 180 sq.ft., making it suitable for offices, conference rooms, or medium-sized residential spaces. The wide-angle airflow and 4-way swing ensure even cooling throughout the coverage area.

Q: When should the self-diagnosis function be used and how does it work?

A: Self-diagnosis should be activated if you suspect any operational issues with the AC. The system detects faults and displays error codes, enabling quick identification of problems for prompt service or repair, ensuring continuous reliable operation.

Q: Where should the Daikin cassette AC be installed for optimal performance?

A: It should be ceiling-mounted in a central location within the room, allowing maximum air circulation via its 4-way air swing. The included installation kit and flexibility in refrigerant pipe length (up to 15 m) simplify the placement of both indoor and outdoor units.

Q: What is the process for operating the different modes on this AC?

A: The AC offers multiple modes-Auto, Cool, Dry, and Fan-which can be selected through the LCD remote. You can switch between these modes to suit varying weather conditions and personal preferences, optimizing comfort and energy usage.

Q: How does the anti-cold air function enhance user comfort?

A: The anti-cold air function prevents bursts of cold air at startup by gradually ramping up fan speed only after the coil has warmed, ensuring a gentle and comfortable airflow whenever the AC is powered on.

Q: What usage benefits does inverter technology offer in this Daikin AC?

A: Inverter technology adjusts the compressor speed according to room temperature demands, resulting in consistent cooling, lower power consumption, quieter operation, and greater durability, ultimately reducing overall running costs.
