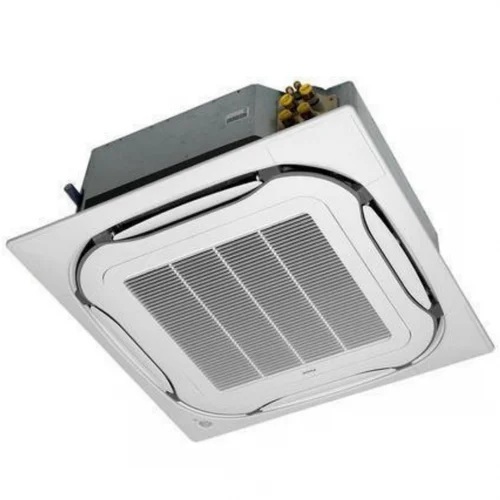

Daikin 2.0 Ton 3 Star-Inverter Cassette AC (FCVFQ71AV16)

Send Inquiry

Request To Call Back

Daikin 2.0 Ton 3 Star-Inverter Cassette AC (FCVFQ71AV16)

Name: Daikin 2.0 Ton 3 Star-Inverter Cassette AC (FCVFQ71AV16)
Brand: OPTECH AIRCON ENGINEERS
Price: 78800 INR
Availability: InStock

Price 78800 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Daikin 2.0 Ton 3 Star-Inverter Cassette AC (FCVFQ71AV16) Specification

Filtration Grade
High

Power Consumption
2150 W

Condition
New

Dimension (L*W*H)
Indoor: 840 x 840 x 246 mm, Outdoor: 845 x 363 x 702 mm

Power Supply
Single Phase, 230V, 50Hz

Air Flow Capacity
1100 CFM

Sensible control
Yes

Cooling Capacity
7.1 kW (24200 BTU/hr)

Power Mode
Inverter

Indoor Fan Input
90 W

Running Current
9.2 A

Compressor
Rotary Inverter

Place of Origin
India

Mounting
Ceiling Suspended (Cassette)

Refrigerant
R32

Temperature Control
Digital

Outdoor Fan Input
60 W

Type Of Compressor
Swing Compressor

Type
Cassette AC, Inverter

Cooling/Heating
Cooling Only

Capacity
2.0 Ton

Power Source
Electric

Voltage
230V / 50Hz / Single Phase

Color
White

Weight (kg)
Indoor Unit: 26 kg, Outdoor Unit: 60 kg

Working Temperature
16C - 46C

Fan Speed
Multi Step

Noise Level
35 dB

Energy Efficiency Rating
3 Star

Remote Operated
Yes

Maximum Piping Height
30 m

Display
LED Display

Installation Type
Ceiling Mounted Cassette

Swing Function
4-Way Air Distribution

Timer
On/Off Timer Available

Panel Dimension (L*W*H)
950 x 950 x 50 mm

Recommended Area Coverage
Up to 260 sq.ft.

Maximum Piping Length
50 m

Operating Modes
Auto, Cool, Dry, Fan

Indoor Noise Level (Low)
32 dB

Drain Pump
Built-in Drain Pump

Moisture Removal
2.8 l/hr

Panel Model
BYCP125K

Piping Connection
Liquid Pipe: 6.4 mm, Gas Pipe: 15.9 mm

About Daikin 2.0 Ton 3 Star-Inverter Cassette AC (FCVFQ71AV16)

The Daikin FCVFQ Series 2.0 TR 3 Star-Inverter Cassette Air Conditioner is a top-performing cooling system that delivers an Indoor Air Flow of 812 CFM, with an Indoor Sound Pressure Level of 39 dBA High. With a Nominal Cooling Capacity of 2.0 TR, 7.1 kW and a Nominal Total Input Power of 2350 W (cooling), this air conditioner is an apt choice for small to mid-sized rooms. It comes with Outdoor Pipe Connection Flare (Type), 6.35 mm (Liquid), and 15.8 mm (Gas). Its ISEER rating is 3.99 w/w, which makes it an energy-efficient and eco-friendly choice for home and office purposes. The unit is silver in color, and its dimensions are 840x840x256 mm. It is designed to be easy to install and use, making it a popular choice for residential and commercial use. With a warranty included, you can be sure that your investment is protected for years to come.

Indoor Air Flow812 CFM

Indoor Sound Pressure Level39 dBA High

Max Piping Elevation10 m

Nominal Cooling Capacity2.0 TR,7.1 kW

Nominal Total Input Power2350 W (cooling)

Outdoor Pipe ConnectionFlare (Type),6.35mm (Liquid),15.8 mm (Gas)

Output Unit Dimensions840x840x256 mm

Iseer3.99 w/w

FAQs of Daikin FCQF Series 2.0 TR 3 Star-Inverter Cassette Air Conditioner:

Q: What is the energy efficiency rating of the Daikin FCQF Series 2.0 TR 3 Star-Inverter Cassette Air Conditioner?

A: The energy efficiency rating of this air conditioner is Three stars.

Q: What is the ISEER rating of this air conditioner?

A: The ISEER rating of this Daikin air conditioner is 3.99 w/w, which means it is an energy-efficient choice for your cooling needs.

Q: What is the Indoor Air Flow rate of this air conditioner?

A: The Indoor Air Flow rate of this air conditioner is 812 CFM.

Q: What is the warranty period provided with this air conditioner?

A: The Daikin FCVFQ Series 2.0 TR 3 Star-Inverter Cassette Air Conditioner comes with a warranty period, ensuring that your investment is protected for years to come.

Q: What is the maximum piping elevation for this air conditioner?

A: The maximum piping elevation for this air conditioner is 10 meters.

Efficient and Uniform Cooling

The Daikin 2.0 Ton Inverter Cassette AC ensures robust cooling performance, featuring four-way swing distribution for thorough air coverage across the space. With a high air flow capacity of 1100 CFM, this model is engineered to maintain consistent temperature and comfort, making it ideal for meeting rooms, offices, or spacious living areas.

Smart Features for Easy Operation

Featuring an LED display, convenient on/off timer, and remote control operation, this cassette AC makes climate management seamless. The unit supports various modes such as auto, cool, dry, and fan for flexibility, while digital temperature control ensures precision. A built-in drain pump streamlines maintenance and operation.

Energy Efficiency and Quiet Performance

Rated 3 Star for energy efficiency, this Daikin cassette AC lowers electricity consumption without compromising on performance. Its inverter technology and rotary swing compressor deliver stable, quiet operation, with noise levels as low as 32 dB for undisturbed comfort during meetings or sleep.

FAQ's of Daikin 2.0 Ton 3 Star-Inverter Cassette AC (FCVFQ71AV16):

Q: How does the four-way swing function enhance air distribution in this Daikin cassette AC?

A: The four-way swing mechanism allows the AC to circulate cool air evenly in all directions, ensuring every corner of the room receives consistent cooling. This results in a more comfortable environment, making it perfect for large or irregularly shaped spaces.

Q: What is the recommended installation area and type for this unit?

A: This Daikin 2.0 Ton cassette AC is designed for ceiling mounting and is best suited for areas up to 260 sq.ft. Typical installations include offices, conference rooms, retail stores, or spacious residential halls in India.

Q: When should I use the Auto, Cool, Dry, or Fan operating modes?

A: Auto mode automatically adjusts cooling based on room temperature, Cool mode provides standard cooling, Dry mode reduces humidity without major temperature changes, and Fan mode circulates air without cooling. Choose modes based on your specific comfort needs and weather conditions.

Q: What process is involved in maintenance due to the built-in drain pump feature?

A: The built-in drain pump allows for efficient removal of condensed water from the unit, minimizing water accumulation and maintenance efforts. Routine cleaning of filters and periodic checks of the pump and drainage pipe help maintain optimal performance.

Q: How does this AC ensure energy savings despite powerful cooling?

A: With a 3 Star energy efficiency rating and inverter-based rotary swing compressor, this cassette AC dynamically adjusts power consumption based on cooling demand, reducing electricity use while delivering strong, consistent performance.

Q: Where can I use this Daikin cassette AC for optimal results?

A: This AC is best utilized in commercial spaces like offices, showrooms, or restaurants, as well as large home areas with a ceiling suitable for cassette installation. Its design maximizes floor space while offering efficient air delivery.

Q: What benefits does the high filtration grade provide for indoor air quality?

A: The high filtration grade in this AC helps remove dust, allergens, and particulates from the indoor air, promoting a healthier environment and comfortable breathing for occupants.
