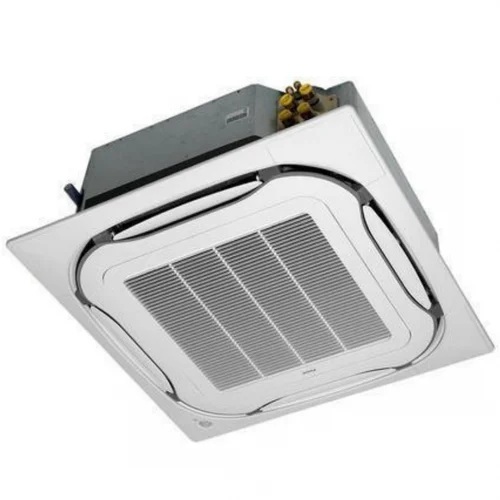

Daikin 3.8 Ton 2 Star Non-Inv Cassette AC (FCQF48ARV16)

Send Inquiry

Request To Call Back

Daikin 3.8 Ton 2 Star Non-Inv Cassette AC (FCQF48ARV16)

Name: Daikin 3.8 Ton 2 Star Non-Inv Cassette AC (FCQF48ARV16)
Brand: OPTECH AIRCON ENGINEERS
Price: 130800 INR
Availability: InStock

Price 130800 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Daikin 3.8 Ton 2 Star Non-Inv Cassette AC (FCQF48ARV16) Specification

Temperature Control
Electronic

Condition
New

Power Consumption
4650 W

Filtration Grade
Standard

Sensible control
Yes

Dimension (L*W*H)
Indoor Unit: 840 x 840 x 245 mm

Running Current
7.2 A

Refrigerant
R-410A

Power Mode
Standard

Indoor Fan Input
129 W

Compressor
Hermetically Sealed

Air Flow Capacity
1350 CFM

Cooling Capacity
13.4 kW

Outdoor Fan Input
200 W

Power Supply
Single Phase, 230V, 50 Hz

Mounting
Ceiling Mounted

Place of Origin
India

Type Of Compressor
Scroll Type

Type
Cassette AC

Cooling/Heating
Cooling Only

Capacity
3.8 Ton

Power Source
Electric

Voltage
230V / 50Hz, Single Phase

Color
White

Weight (kg)
Indoor: 32 kg, Outdoor: 75 kg

Working Temperature
16C - 52C

Fan Speed
Multi-Speed

Noise Level
45 dB (Indoor Unit)

Energy Efficiency Rating
2 Star

Remote Operated
Yes

Maximum Height Difference
30 m

Maximum Piping Length
50 m

Swing
4 Way Air Flow

Indoor Cooling Sound Pressure
45 / 39 / 36 dB(A)

Suitable Room Size
up to 420 sq.ft

Installation
Professional required

Piping Connections (Liquid/Gas)
9.5 mm / 15.9 mm

Panel Size
950 x 950 mm

Outdoor Unit Protection
Anti-corrosive treatment

Display
Digital Wired Controller

Drain Pipe Size
32 mm OD

Indoor Air Circulation
1320 m3/h

Operation Mode
Auto / Cool / Dry / Fan

About Daikin 3.8 Ton 2 Star Non-Inv Cassette AC (FCQF48ARV16)

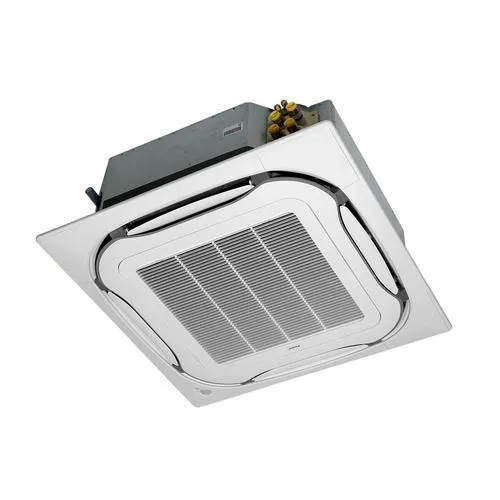

The Daikin FCQF Series 3.8 TR 2 Star Non-Inverter Cassette Air Conditioner is a top-performing cooling system that delivers an Indoor Air Flow of 36.5 M3/MIN with an Indoor Sound Pressure Level of 46 dBA High. With a Nominal Cooling Capacity of 3.8 TR, 13.36 kW and a Nominal Total Input Power of 4200 W (cooling), this air conditioner is an apt choice for small to mid-sized rooms. It comes with Outdoor Pipe Connection Flare (Type), 9.5mm (Liquid), and 15.9 mm (Gas). Its ISEER rating is 3.26 w/w, which makes it an energy-efficient and eco-friendly choice for home and office purposes. The unit is silver in color, and its dimensions are 950x950x290 mm. It is designed to be easy to install and use, making it a popular choice for residential and commercial use. With a warranty included, you can be sure that your investment is protected for years to come.

Indoor Air Flow36.5 M3/MIN

Indoor Sound Pressure Level46 dBA High

Max Piping Elevation15 m

Nominal Cooling Capacity3.8 TR,13.36 kW

Nominal Total Input Power4200 W (cooling)

Outdoor Pipe ConnectionFlare (Type),9.5mm (Liquid),15.9 mm (Gas)

Output Unit Dimensions950x950x290 mm

Iseer3.26 w/w

FAQs of Daikin FCQF Series 3.8 TR 2 Star Non-Inverter Cassette Air Conditioner:

Q: What is the energy efficiency rating of the Daikin FCQF Series 3.8 TR 2 Star Non-Inverter Cassette Air Conditioner?

A: The energy efficiency rating of this air conditioner is two stars ().

Q: What is the ISEER rating of this air conditioner?

A: The ISEER rating of this Daikin air conditioner is 3.26 w/w, which means it is an energy-efficient choice for your cooling needs.

Q: What is the Indoor Air Flow rate of this air conditioner?

A: The Indoor Air Flow rate of this air conditioner is 36 M3/MIN.

Q: What is the warranty period provided with this air conditioner?

A: The Daikin FCQF Series 3.8 TR 2 Star Non-Inverter Cassette Air Conditioner comes with a warranty period, ensuring that your investment is protected for years to come.

Q: What is the maximum piping elevation for this air conditioner?

A: The maximum piping elevation for this air conditioner is 15 meters.

Efficient Cooling for Large Spaces

This Daikin cassette AC offers strong, uniform cooling for rooms up to 420 sq.ft, making it perfect for offices, showrooms, or large living areas. Its 4-way swing design ensures even air distribution, while the multi-speed fan adapts airflow to your preference. The durable anti-corrosive treatment on the outdoor unit further extends its lifespan, even in challenging weather environments.

User-Friendly Control and Operation

With an easy-to-operate digital wired controller and remote functionality, you have complete command over temperature and airflow. The AC features Auto, Cool, Dry, and Fan operation modes, catering to diverse needs throughout the year. The standard filtration grade ensures improved air quality while the electronic temperature control maintains accurate comfort levels.

Professional Installation and Reliable Performance

Professional installation is required for this ceiling-mounted cassette AC, ensuring secure fitting and optimal operation. Designed to withstand Indian extremes, it operates between 16C and 52C and handles up to a 50 m pipe length and 30 m height difference for flexible placement. Backed by Daikin quality, this AC delivers robust performance and energy-efficient cooling.

FAQ's of Daikin 3.8 Ton 2 Star Non-Inv Cassette AC (FCQF48ARV16):

Q: How is the Daikin FCQF48ARV16 Cassette AC installed?

A: The Daikin 3.8 Ton Cassette AC requires professional installation, as it is a ceiling-mounted system. Experts will ensure the piping connections, drainage, and electrical wiring conform to specifications for optimal performance and safety.

Q: What size room is suitable for the Daikin 3.8 Ton Cassette AC?

A: This AC is ideal for large areas up to 420 sq.ft, making it well-suited for spacious offices, conference rooms, retail outlets, or large living rooms where consistent and widespread cooling is necessary.

Q: What benefits does the anti-corrosive treatment offer?

A: The anti-corrosive treatment applied to the outdoor unit significantly increases its resistance to harsh weather and environmental factors. This helps ensure long-lasting performance, especially in regions with high humidity or pollution.

Q: Where can the digital controller be used for this AC?

A: The digital wired controller can be conveniently mounted on the wall within the cooled space, allowing users to easily set temperatures, adjust fan speed, and select operating modes even from a distance.

Q: What is the process for cleaning and maintaining this cassette AC?

A: Regular maintenance involves cleaning or replacing the air filter and checking the drainage system for blockages. It is advisable to schedule routine servicing by an authorized technician to inspect refrigerant levels, electrical connections, and ensure overall performance.

Q: When can I expect efficient performance from this AC?

A: The Daikin cassette AC is engineered to work efficiently within a temperature range of 16C to 52C. Consistent, optimal performance is achieved by installing within recommended specifications and conducting periodic maintenance.
